MCO-LED Media Facade

Pixel Pitch：16,20,25,25/50,31.25mm


Product Introduction

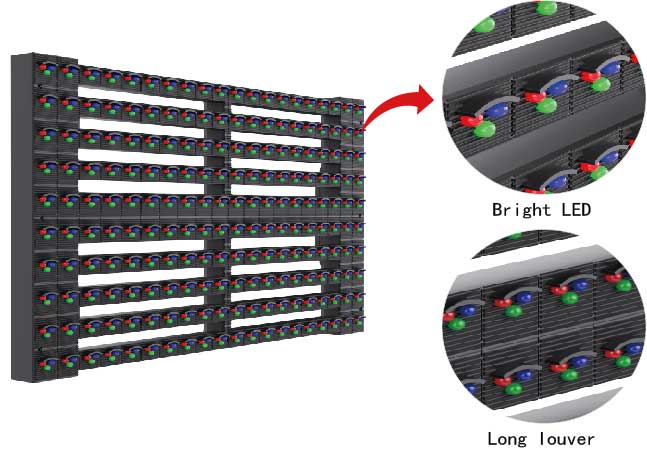

 High Brightness，High Contrast
The panel uses bright LED to bring brightness up to 10,000nits， besides, long louver on mask is built to shade LEDs from lights.
These contribute to a very high contrast on the panel.

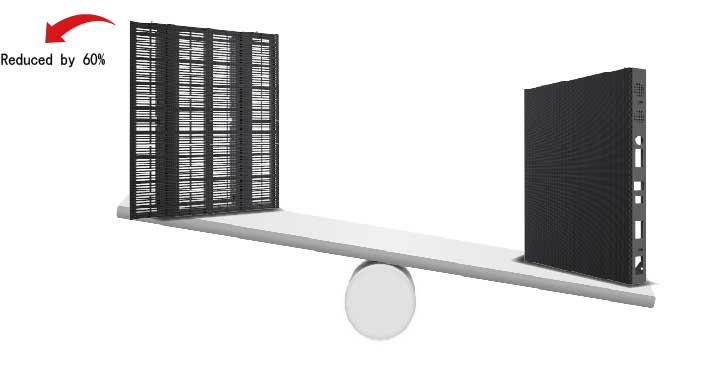

Lightweight:21kg/㎡
The panel weights only 21kg/㎡, 60% lighter than non-transparent panel.

High Transparency: 35%~70%
Environment-friendly & Highly Reliable
Power consumpation is 120w/㎡ (max 360w/㎡).
IP65, modules against strips, highly reliable.
Excellent Heat Dissipation
Most of the parts are with floating air. The heat dissipation is excellent and the extra cooling devices (AC) are unneeded.

Technical Parameters

Parameters MCO-16 MCO-20 MCO-25 MCO-25/50 MCO-31.25
LED DIP347 DIP347 DIP347 DIP347 DIP347
Pixel Pitch (mm) 16.67 20 25 H.25/V.50
 31.25
Module Size (WxHmm)
 400x200
 400x200
 400x200
 400x200
 500x250
Module Resolution 24x12
 20x10
 16x8
 8x8
 16x8
Cabinet Size (WxHmm) 1600x1600 1600x1600 1600x1600 1600x1600 1000x2000
Weights (kg/㎡) 21 21 20 19 19
Pxiel Density (Pixels/㎡)
3,600 2,500 1,600 800 1,024
IP Rating IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54
Cabinet Materials Galvanized sheet metal Galvanized sheet metal Galvanized sheet metal Galvanized sheet metal Galvanized sheet metal
Brightness (Nits) 8,500-10,000 8,500-10,000 8,500-10,000 8,500-10,000 8,000
Viewing Angle (H./V.) 120°/100° 120°/100° 120°/100° 120°/100° 120°/100°
Transparent Rate 35% 40% 45% 70% 50%
Max. Power Consumption (W/㎡) 360 360 360 360 360
Avg. Power Consumption (W/㎡) 120 120 120 120 120
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Maintenance Rear Rear Rear Rear Rear
