FSO
Pixel Pitch:2.9/3.9/4.8/6/8/10/16mm

Product Introduction

High Brightness,High Contrast

The panel uses bright LED to bring brightness up to 10,000nits, besides, long louver on mask is used to shade LEDs from the sun and it contributes to high contrast.

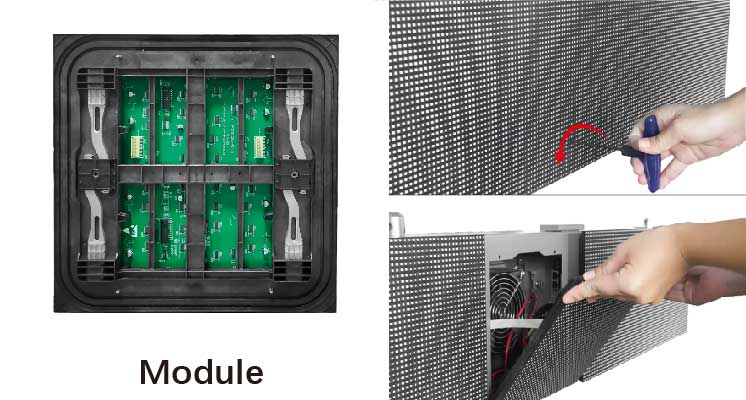

Front or Rear Accessible
The panel can be easily accessible from front and rear. From front, using an allen key, 1/4 turn on two positions in a module, the module can be removed.

Excellent Cooling

Cooling fans and heat emission holes can rapidly dissipate heat, reducing power consumption, which brings longer product service life.

Waterproof
IP65/IP54 withstands extreme weather conditions.

Technical Parameters

Parameters ASO-2.9 ASO-3.9 ASO-4.8 ASO-6 ASO-8 ASO-10S ASO-10D ASO-16D
LED SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 DIP347 DIP347
Pixel Pitch(mm) 2.97 3.91 4.81 6.67 8 10 10 16
Module Resolution(Pixels) 84x84
 64x64 52x52 48x48 40x40 32x32 32x32
 20x20
Module Size(WxHmm)
 250x250
 250x250
 250x250
 320x320
 320x320
 320x320
 320x320
 320x320
Panel Size(WxHmm) 1,000x1,000
 1,000x1,000 1,000x1,000 960x960 960x960 960x960 960x960 960x960
Weight(kg/㎡) 50 50 50 50 50 50 50 50
IP Rating IP65/IP54
 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54
Brightness(Nits) 5000-8000
 5000-8500 5000-8500 5500-9500 6500-10000 7000-10000 8500-10000 6000-10000
Viewing Angle(H./V.) 120°/120°
 120°/120° 120°/120° 120°/120° 120°/120° 120°/120° 120°/60° 120°/60°
Contrast 4000:1
 4000:1 4000:1 4000:1 4000:1 4000:1 3000:1 3000:1
Max. Power Consumption(W/㎡) 600-800
 600-800 600-800 600-800
 600-800 600-800 360 360
Avg. Power Consumption(W/㎡) 266
 266 266 266 266 266 120 120
Refresh Rate(HZ) ≥1920-3840
 ≥1920-3840 ≥1920-3840 ≥1920-3840 ≥1920-3840 ≥1920-3840 ≥3840 ≥3840
Cabinet Materials sheet metal sheet metal sheet metal sheet metal sheet metal sheet metal sheet metal sheet metal
Maintenance Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
