SPA-Stadium Perimeter Panel
Pixel Pitch:6/8/10mm
Product Introduction

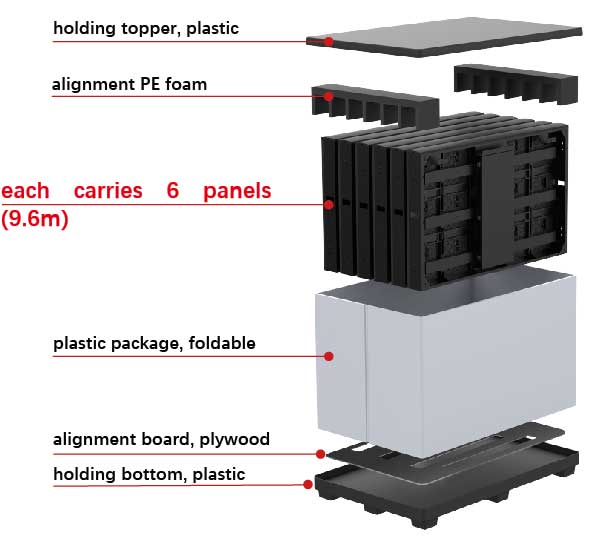

Ease Box
Super efficient for containing, transportation & warehousing.
Protective, Robust & Lasting
Strong Chassis
made of high intensity sheet aluminum coated with carbon powder.
Soft Topper
lessens the impact of any knock to athletes and avoids being injured.
Soft Module Mask
lessens the impact of any knock to athletes and avoids being injured.
IP65 Waterproof
Rated IP65, front & back, the panel repels the harshest of wet conditions.
High Brightness, High Contrast
Max brightness：10000nits, Max： 10000:1
Big Viewing Angle
Rear Maintenance
Product Details
Technical Parameters
| Parameters | SPA-6 | SPA-8 | SPA-10 |
| LED | SMD2727 | SMD2727 | SMD3535 |
| Pixel Pitch (mm) | 6.67 | 8 | 10 |
|
Module Size (WxHmm) |
320x320 |
320x320 |
320x320 |
| Module Resolution |
48x48 |
40x40 |
32x32 |
| Cabinet Size (WxHmm) | 1600x960 | 1600x960 | 1600x960 |
| Weights (kg/㎡) | 37 | 37 | 37 |
| Pxiel Density (Pixels/㎡) | 22,477 | 15,625 | 10,000 |
| IP Rating | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Cabinet Materials | Sheet Aluminum | Sheet Aluminum | Sheet Aluminum |
| Brightness (Nits) | 6,000-10,000 | 6,000-10,000 | 6,000-10,000 |
| Viewing Angle (H./V.) | 120°/106° | 120°/106° | 120°/106° |
| Max. Power Consumption (W/㎡) | 600 | 600 | 600 |
| Avg. Power Consumption (W/㎡) | 200 | 200 | 200 |
| Refresh Rate (HZ) | 7,680-15,360 | 7,680-15,360 | 7,680-15,360 |
| Maintenance | Rear | Rear | Rear |
