invisiLED
Pixel Pitch: P3.9*7.8, 5.2*10.4, 10.4, 15.6
Product Introduction
invisiLED
Transparent LED

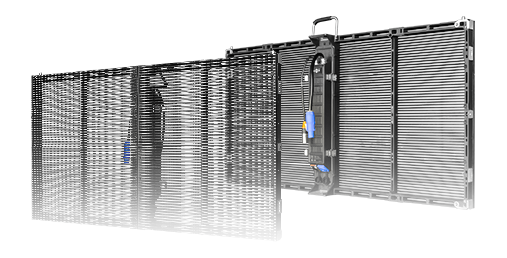

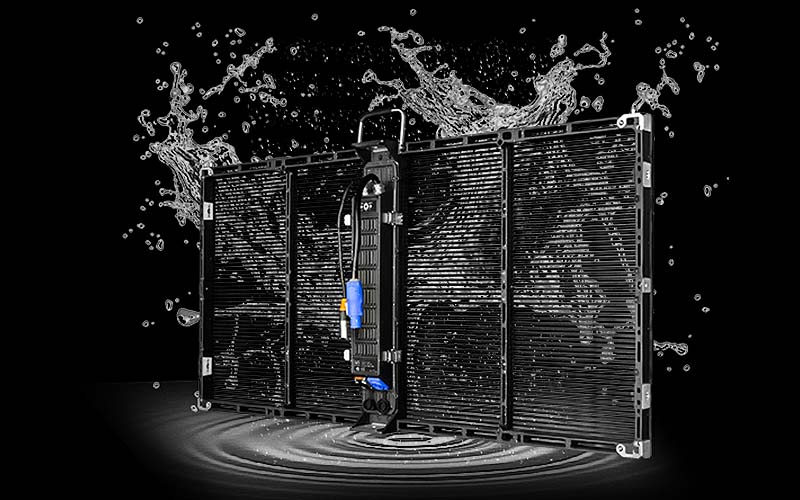

invisiLED is a outdoor transparent screen for both permanent installation and instant installation.The panel has a high transpareancy of max 71%. Panel is lightweight with high intensity. IP65 waterproof level ,the panel repels the harshest of wet conditions.

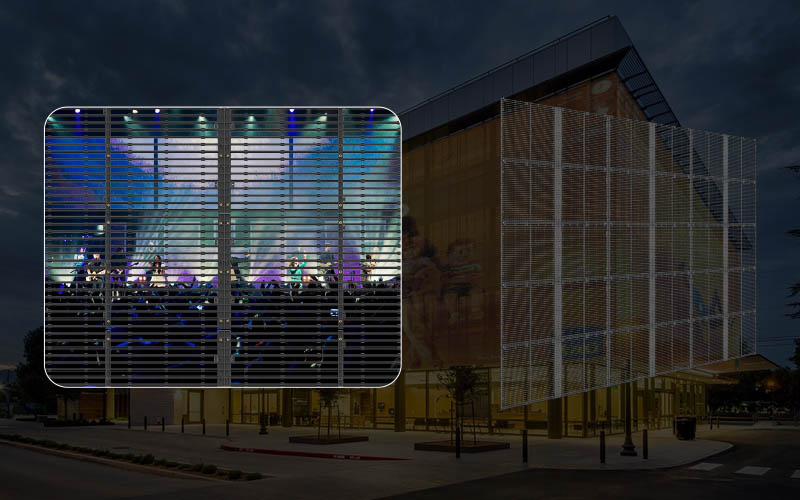

Highly Transparent, 53%~71%

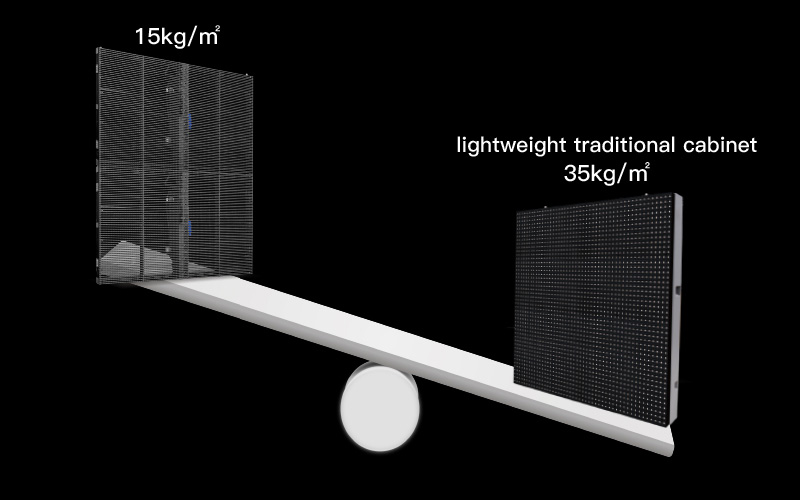

Lightweight: 7.5kg each
High Strength

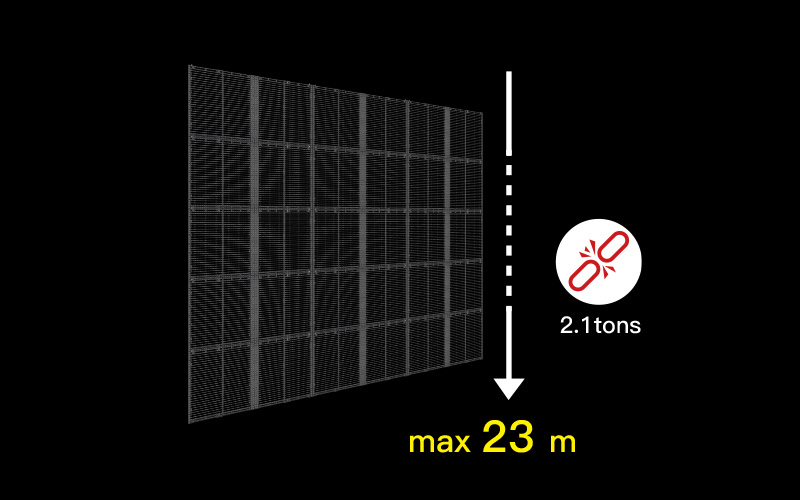

The panel has been tested to a breaking point of 2.1 tons.
Taking a safety factor of 6, 23m of transLED can be safely hung.

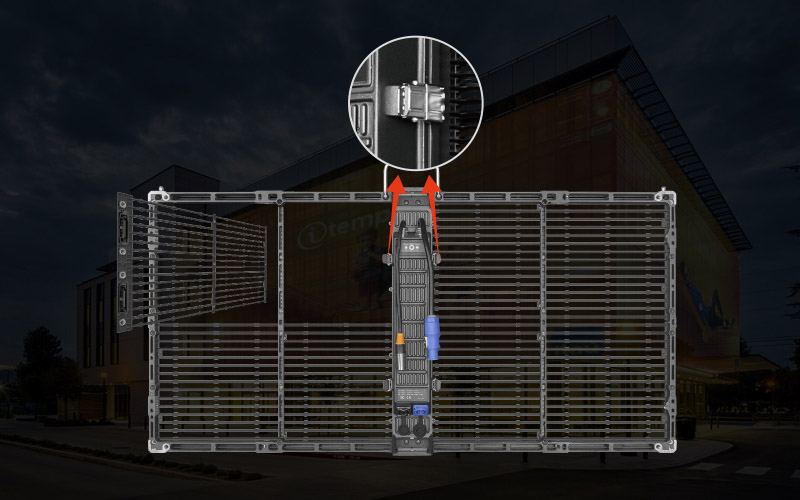

The modules front and rear access.
Technical Parameters
| Parameters | P3.9*7.8 | P5.2*10.4 | P10.4 | P15.6 |
| LED | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
| Pixel Pitch (mm) | 3.9*7.8 | 5.2*10.4 | 10.4 | 15.6 |
|
Module Size (WxHmm) |
500x250 |
500x250 |
500x250 |
500x250 |
| Module Resolution |
128x32 |
96x24 |
48x24 |
32x16 |
| Cabinet Size (WxHmm) | 1000x500 | 1000x500 | 1000x500 | 1000x500 |
| Weights (kg/pc) | 7.5 | 7.5 | 7.5 | 7.5 |
| Pxiel Density (Pixels/㎡) | 32,768 | 18,432 | 9,216 | 4,096 |
| IP Rating | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Cabinet Materials | diecast aluminum | diecast aluminum | diecast aluminum | diecast aluminum |
| Brightness (Nits) | ≥4500 | ≥4500 | ≥4500 | ≥4500 |
| Transparent Rate | 53% | 53% | 58% | 71% |
| Max. Power Consumption (W/㎡) | 800 | 800 | 800 | 800 |
| Avg. Power Consumption (W/㎡) | 260 | 260 | 260 | 260 |
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
