wallPad
Pixel Pitch: P1.56, 1.89, 2.6, 2.9, 3.9, 4.8
Product Introduction
wallPad
Indoor wallmount panel
wallPad is a lightweight & wallmount fine pitch product, which will revolutionize the indoor LED experience, and introduce many new customers to LED activations.wallPad has allows for extensive flexibility. wallPad’s precise chassis assembly provides a seamless and consistent display, and the wallPad is less than 44mm deep, overall providing an exceptional finish.
Super Flexibility to Meet the Required Sizes
wallPad is able to fit width & height of the wall separately by times of 250mm

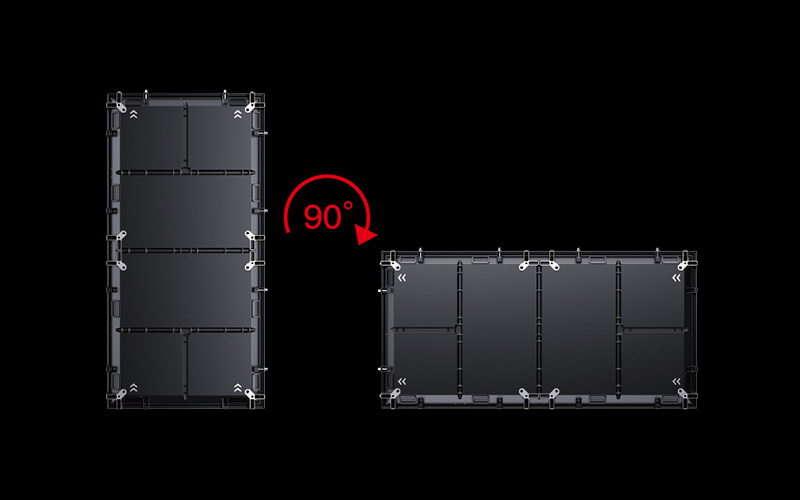

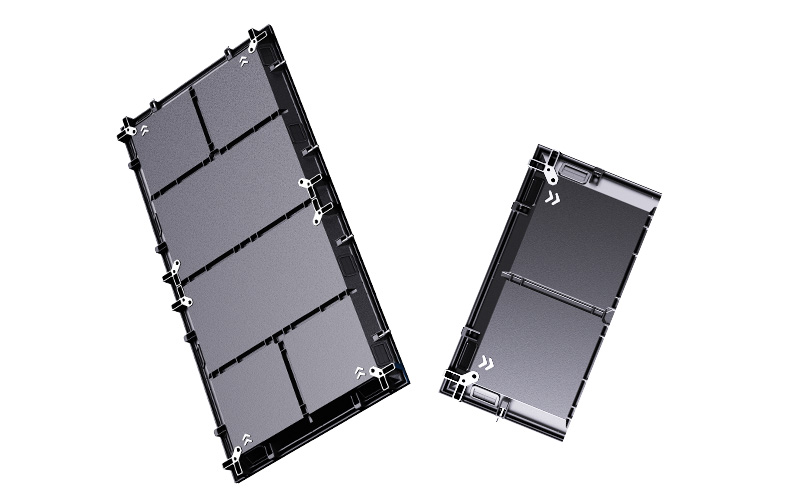

Powerfull Main Panel, Universal and Cost Effective
The main panel 500x1000mm that can turn 90° while modules (all remained parts) stay same solves most of the required sizes on screen.

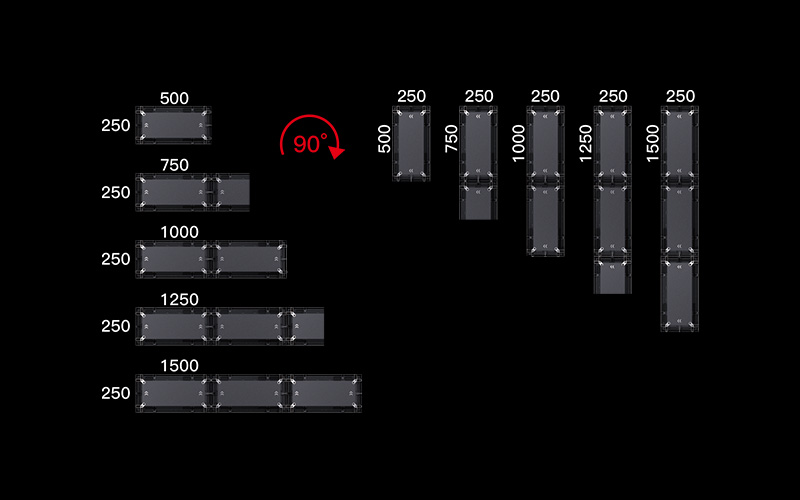

Magic Assisted Panel
The assisted panel is able to extend on times of 250mm and to turn 90° (modules, hubs... stay same), super flexible to fit the remaining 250mm in a screen.

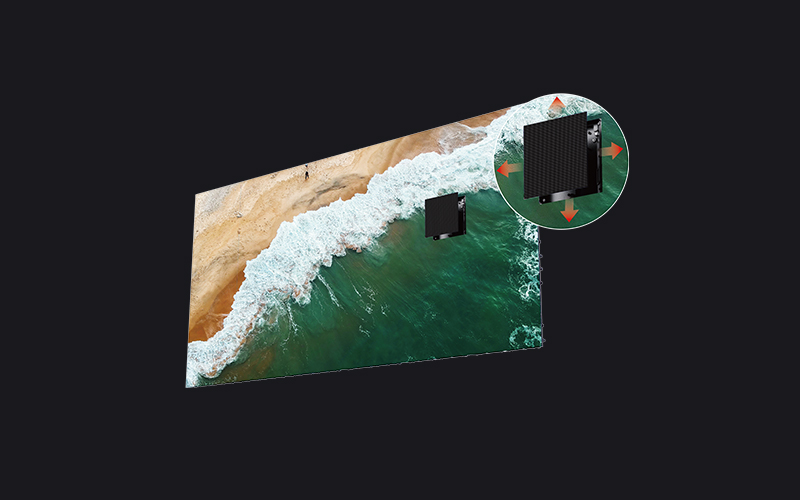

Making a Seamless Screen
wallPad allows each module to be slightly adjusted left, right, up or down, to have a seamless joint between modules.

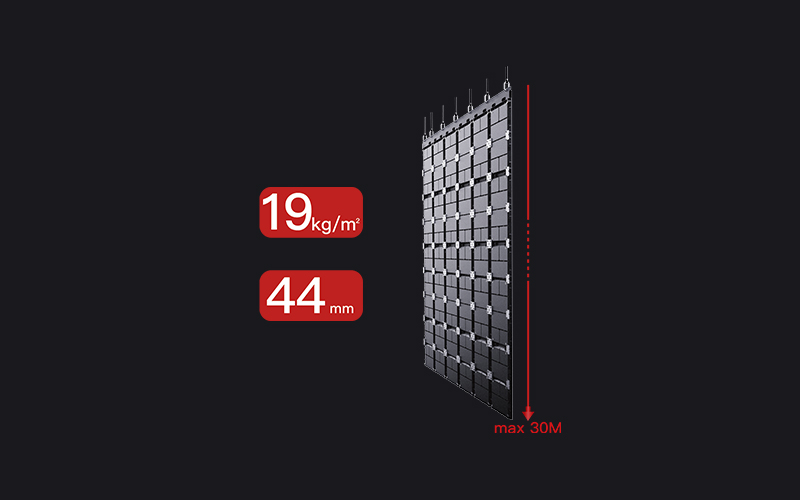

High Strength
30m of wallPad (without extra bracket) can safely hang vertically and seamlessly.

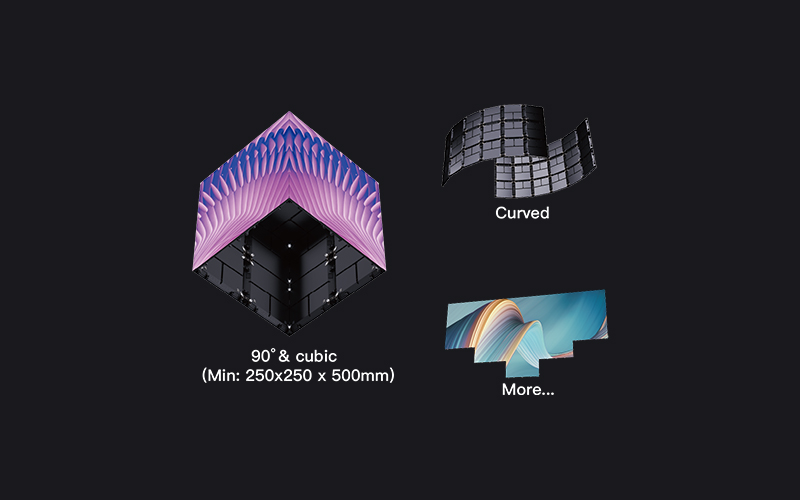

Creative Installation
wallpad allows you to realize many creative solutions. In addition to standard designs, WallPad panels can curve, at right angles and more,let your imagination be the limitation.

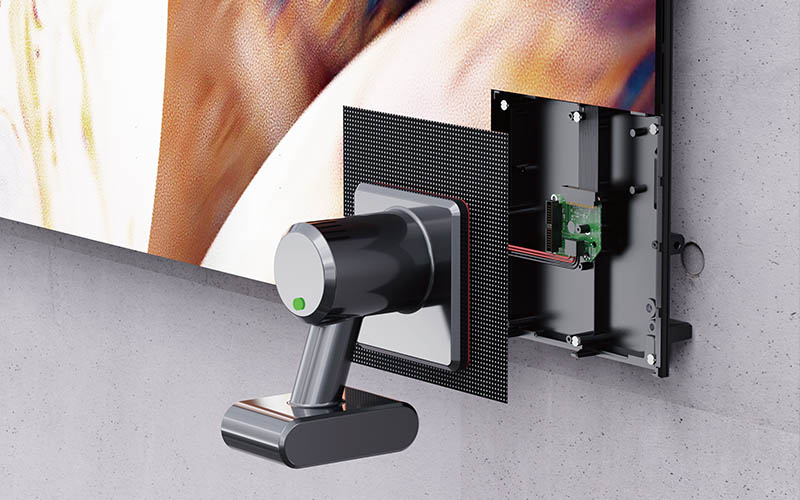

Easy Maintenance
All parts are front accessible

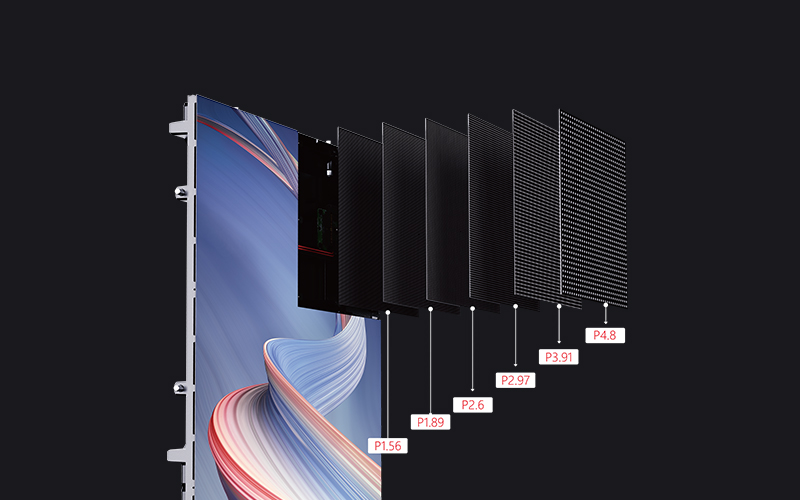

Powerful Compatibility
One chassis with same internal composition for all available pitches.All parts including module, powersupply,receiving card, hub, cables etc. are interchangeable, which eases the stockings on finished panels.
This feature will help save most of the cost when users upgrade or retrofit the screen, what it needs is to change the modules and the spent will be around 30% of the total.

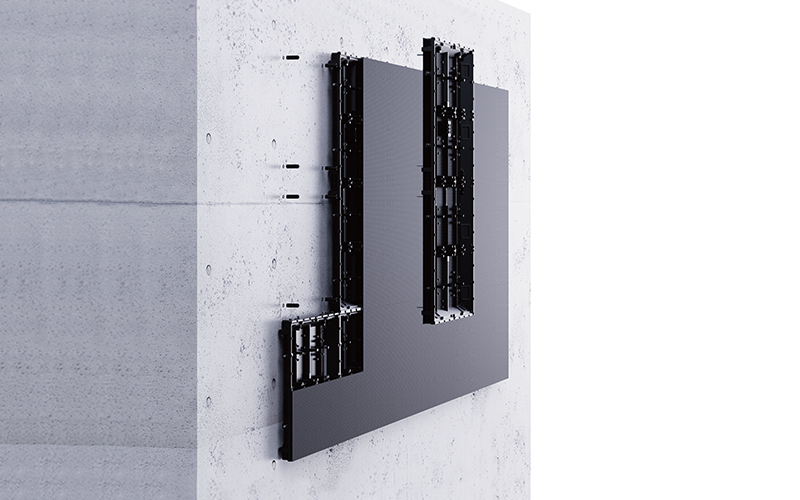

Bracket Free
wallPad can be directly mounted against wall when the wall is smooth and flat and screen size is not big,less than 20m for example.

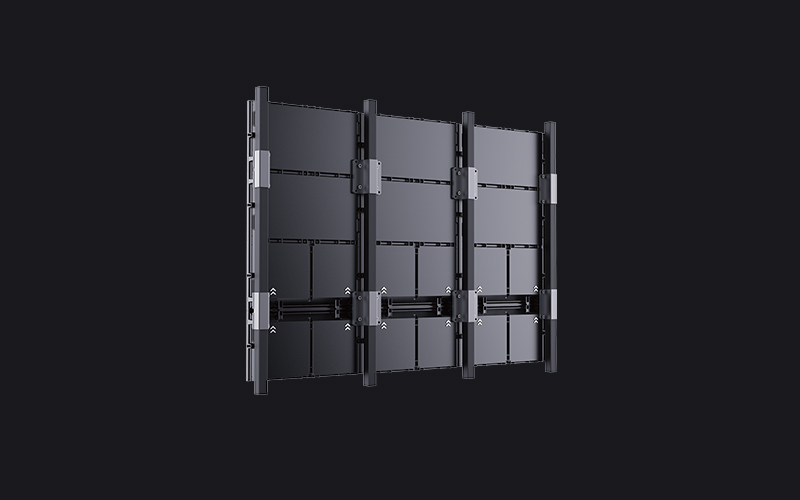

Common Bracket Installation
Technical Parameters
| Parameters | vP1.56 | vP1.89 | vP2.6 | vP2.9 | vP3.9 | vP4.8 |
| LED | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Pitch (mm) | 1.56 | 1.89 | 2.6 | 2.9 | 3.9 | 4.8 |
|

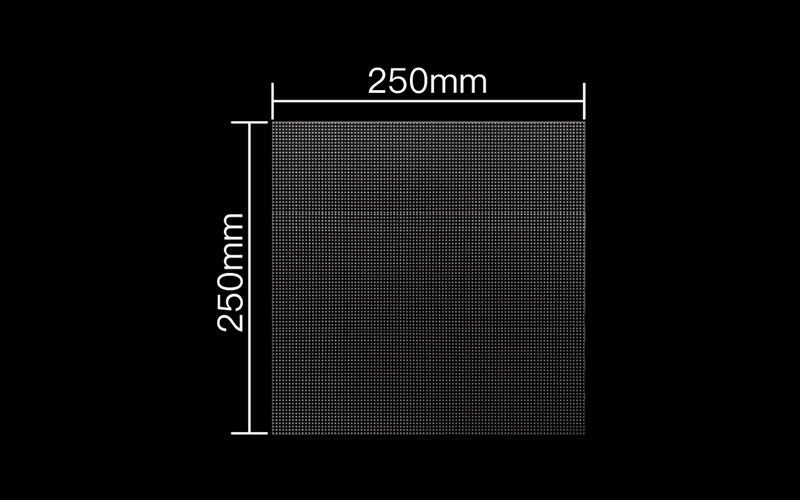

Module Size (WxHmm) |
250x250 |
250x250 |
250x250 |
250x250 |
250x250 |
250x250 |
| Module Resolution |
160x160 |
132x132 |
96x96 |
84x84 |
64x64 |
52x52 |
| Panel Size (WxH mm) | 250x | 250x | 250x | 250x | 250x | 250x |
| Weight (kg/㎡) | 19 | 19 | 19 | 19 | 19 | 19 |
|
Pixel Density (pixels/㎡)
|
409,600 | 278,784 | 147,456 | 112,896 | 65,536 | 43,264 |
| Cabinet Material |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
| Brightness(Nits) | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 |
| Max. Power Consum(W/㎡) | 420 | 420 | 420 | 420 | 420 | 420 |
| Avg. Power Consum(W/㎡) | 140 | 140 | 140 | 140 | 140 | 140 |
| Refresh Rate(HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Maintenance | Front | Front | Front | Front | Front | Front |
