videoPad-Fine-pitch 16:9 Panel
Pixel Pitch: P0.9, P1.2, P1.5, P1.8
Product Introduction

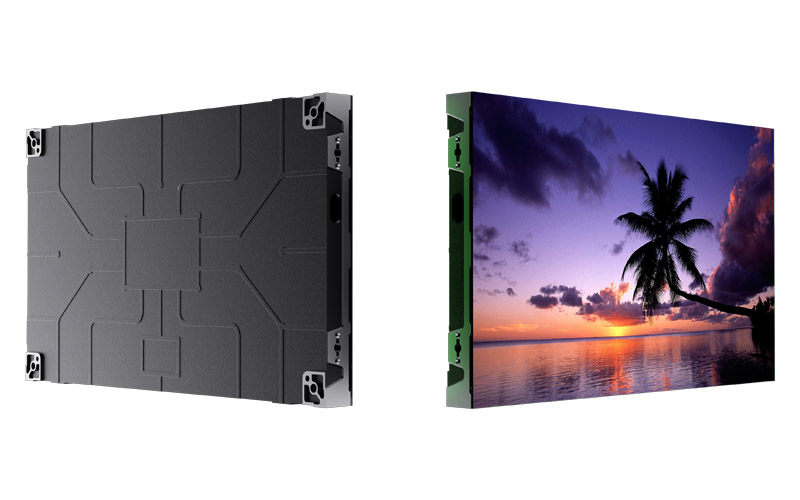

videoPad
videoPad is a fine-pitch 16:9 panel.Its panel size is 600*337.5mm that has a 16:9 aspect ratio, more flexible to fit 2K,4K or 8K video wall.
It weights only 4.4 kg/pcs and thickness is only 38mm.videoPad can bring unparalleled visual experience for your indoor led video wall.
It weights only 4.4 kg/pcs and thickness is only 38mm.videoPad can bring unparalleled visual experience for your indoor led video wall.

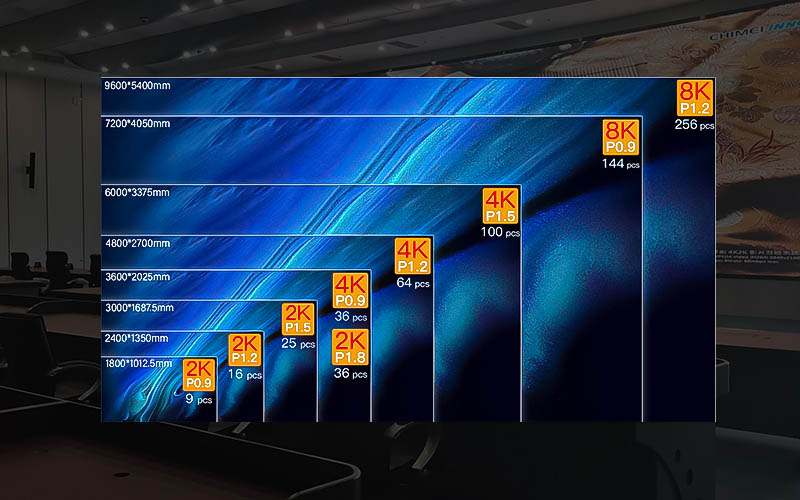

Nice Pitch & 16:9 Panel Size,Perfect Fitting 2K, 4K or 8K Video Wall

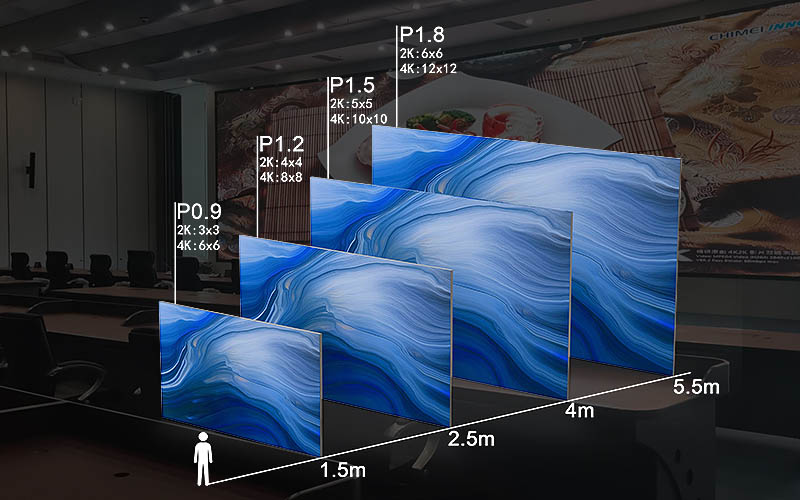

Suggested Viewing Distance

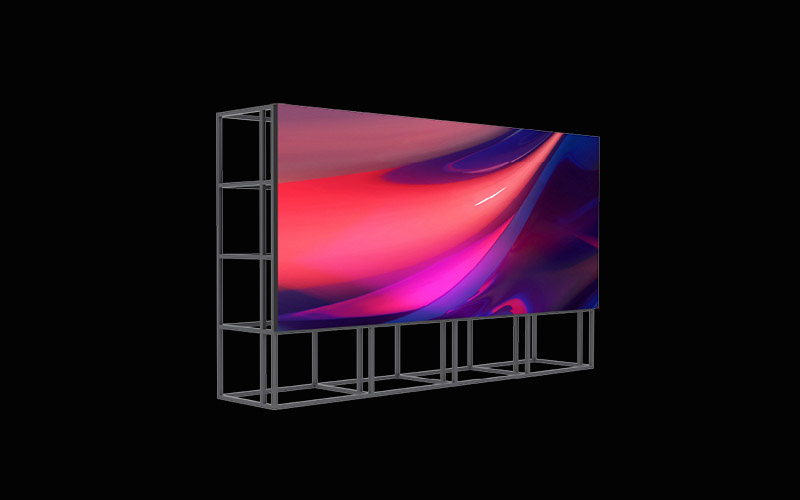

Multiple Installation Solution
fixed onto framework via joint plate
Multiple Installation Solution

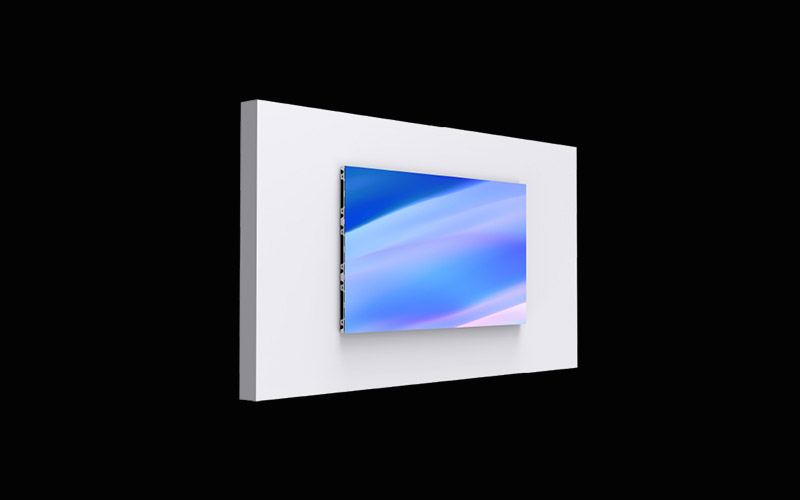

wallmount (direct or bracket assisted)

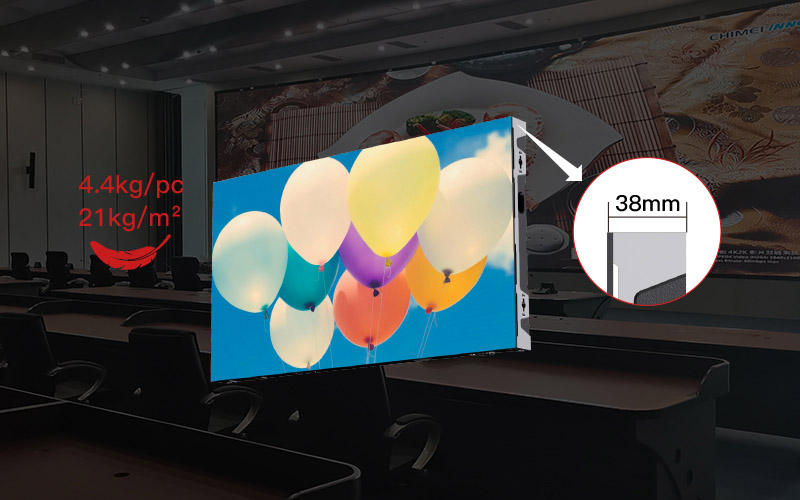

Lightweight and Thin

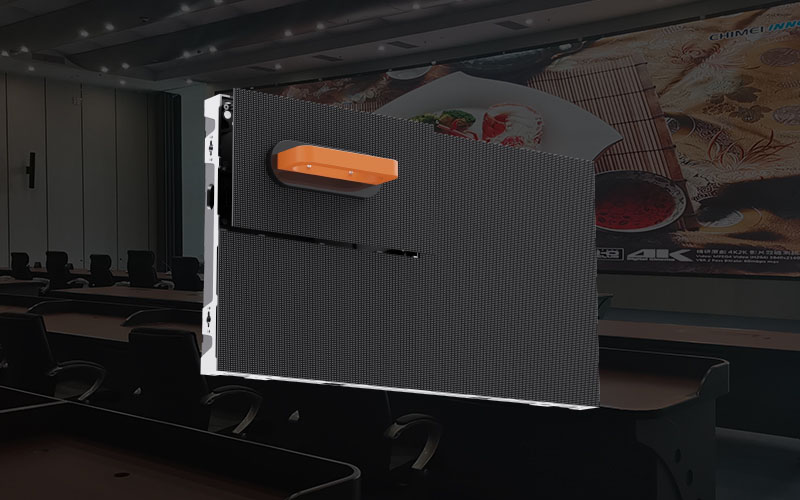

All Parts are Front Accessible

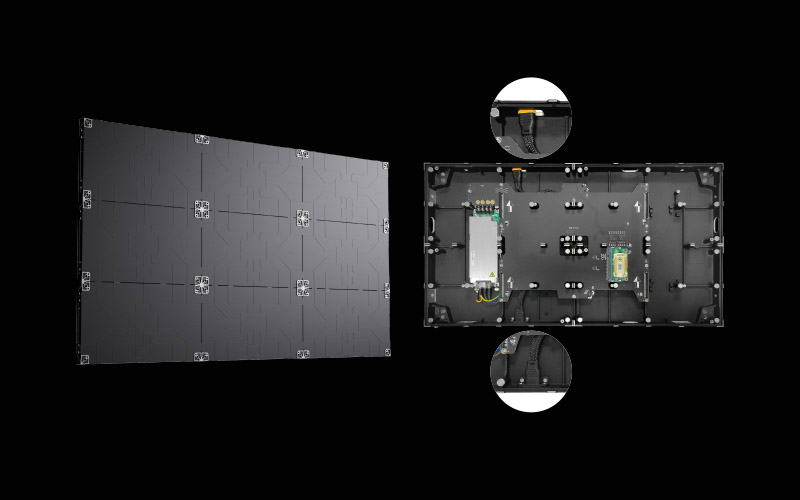

Clean Backside, no Cables and Connectors Shown
High Grayscale
Customers can choose high speed IC drivers and this will help the panel obtain a max graysale of 14 bits or even 16 bits,
then the screen is able to perform as rich details as what the content has.
then the screen is able to perform as rich details as what the content has.
High Refresh Rate
Customers can choose high speed IC drivers and this will help the panel obtain a max refresh of 3840Hz, then the screen is able to perform best smooth.
Dual Backup (optional)
Power and data redundancy to provide highly reliability.
Technical Parameters
| Parameters | vP0.9 | vP1.2 | vP1.5 | vP1.8 |
| Pixel Pitch (mm) | 0.9375 | 1.25 | 1.5625 | 1.875 |
|
Module Size (WxHmm) |
300x168.75 |
300x168.75 |
300x168.75 |
300x168.75 |
| Module Resolution |
320x180 |
240x135 |
192x108 |
160x90 |
| Panel Size (WxH mm) | 600x337.5 | 600x337.5 | 600x337.5 | 600x337.5 |
| Weight (kg/㎡) | 4.4 | 4.4 | 4.4 | 4.4 |
|
Pixel Density (pixels/㎡)
|
1,137,777 | 640,000 | 409,600 | 284,445 |
| Cabinet Material |
Die cast aluminum |
Die cast aluminum |
Die cast aluminum |
Die cast aluminum |
| Brightness(Nits) | 500-700 | 500-700 | 500-700 | 500-700 |
| Max. Power Consum(W/㎡) | 600 | 600 | 600 | 600 |
| Avg. Power Consum(W/㎡) | 200 | 200 | 200 | 200 |
| Refresh Rate(HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Maintenance | Front | Front | Front | Front |
